What is BrainSaw?

Diagram of the STPT cycle: a two-photon objective imaging brains embedded in agarose, then a vibratome blade slicing the block, with arrows looping between the two

BrainSaw is an open-source, block-face serial two-photon tomography (STPT) system for whole-brain imaging (preprint). It provides cellular-resolution, whole-organ volumetric imaging whilst avoiding complex sample preparation. Agarose-embedded fixed tissue is sliced with an integrated vibratome and tile-scanned with a two-photon microscope. Slicing and imaging continue until all of the sample has been acquired. BrainSaw has been used mostly to image mouse brains, where many of the key use cases require modest data volumes (often under 10 GB per channel per brain). However, STPT is compatible with any tissue that slices well on a vibratome and can be imaged with two-photon microscopy.

BrainSaw was initially developed in Tom Mrsic-Flogel's lab, before being integrated into the Sainsbury Wellcome Centre Advanced Microscopy Facility, where its high throughput and ease of use made it a natural fit. Up to 6 mouse brains can be imaged overnight on a single microscope; the process is fully automated and highly reliable. The SWC's three BrainSaw systems (below) have imaged over 7,000 brains in the last decade, and the technology has been adopted by others and spread worldwide. BrainSaw has contributed to 46 research papers and is routinely used for whole-brain imaging tasks such as mapping electrode tracks or brain-wide cell counting.

Our BakingTray acquisition software is modular and can run new custom STPT systems tailored to the needs of the host institute. Existing two-photon microscopes can be converted to a BrainSaw for as little as €35,000 by adding a high-quality 3-axis stage and a vibratome. Potential adopters can contact Rob Campbell for questions or assistance. Support is available for all stages of the build, including funding acquisition and initial planning.

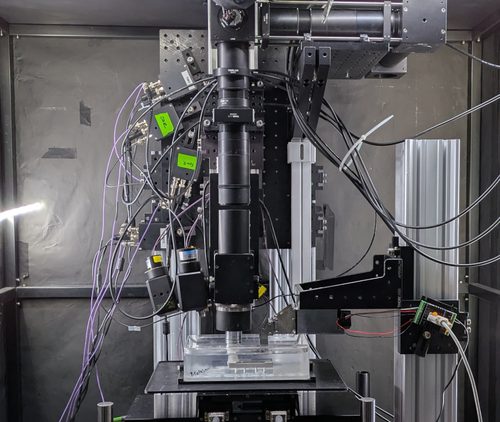

BrainSaw OG, the original serial-section two-photon tomography microscope at the Sainsbury Wellcome Centre
BrainSaw OG

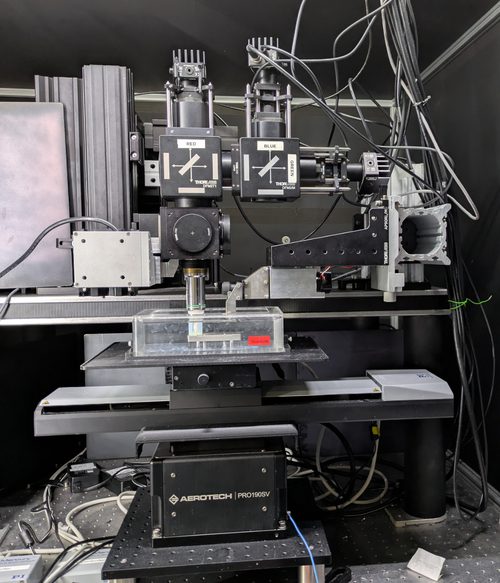

NeuroVision serial two-photon microscope at the Sainsbury Wellcome Centre, with its vibratome and sample bath
NeuroVision

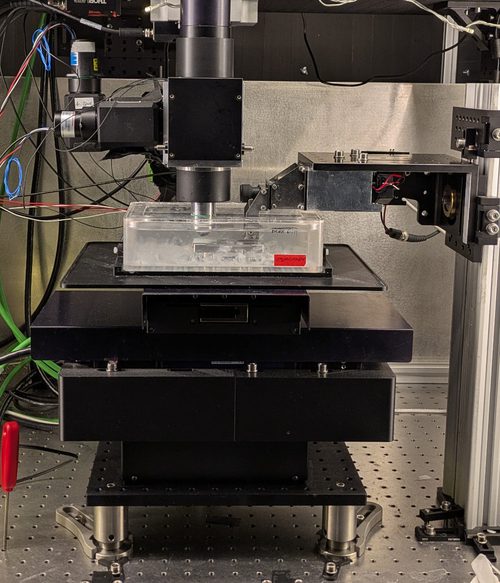

OrganGrinder serial two-photon microscope at the Sainsbury Wellcome Centre
OrganGrinder

Ecosystem

BrainSaw logo: a mouse brain on a circular saw blade

BrainSaw: microscopy systems

We provide CAD models and build instructions for assembling a BrainSaw serial-section two-photon microscope.

BakingTray serial-section acquisition software logo: six brains in a baking tray

BakingTray: serial-section acquisition software

BakingTray is modular serial-section acquisition software for MATLAB. It accommodates diverse hardware configurations and acquires images via ScanImage. It can also upgrade legacy TissueCyte 1000 systems.

Docs
StitchIt image stitching software logo: four tiles sewn together into a brain section

StitchIt: assembling tile scan data into stitched sections

StitchIt runs alongside BakingTray to pre-process data during acquisition, stream the last stitched section to a web page, and initiate stitching automatically when acquisition completes. It includes tools for downsampling and batch-processing image stacks, with operations highly parallelised for speed.

Docs

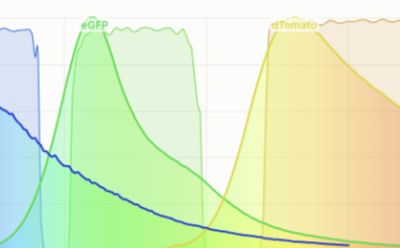

BrainSaw Channel Chooser showing eGFP and tdTomato emission spectra against the microscope's filter bands

BrainSaw Channel Chooser

This interactive web tool helps BrainSaw users choose the best excitation wavelength and detection channels for their fluorophores.

Launch

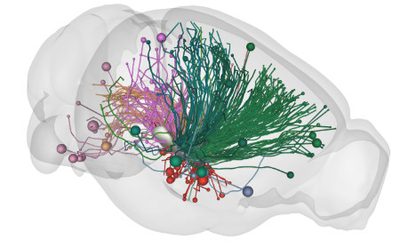

Traced neurons shown in 3D inside a mouse brain outline, rendered with BrainGlobe's brainrender

Analysis: BrainGlobe

Our favoured option for analysis of serial-section data is the BrainGlobe suite, which provides tools for registration, visualisation, and automated cell counting, amongst others. These Python-based tools are maintained by the SWC neuroinformatics team.

brainglobe.info

Video: BakingTray in action

BakingTray acquiring a single section through four mouse brains.

Citing BrainSaw

Information on how to cite BakingTray and BrainSaw is available on the BakingTray project page.

Funding

Tom Mrsic-Flogel provided funding, time, and space to get the project off the ground. Continued development of BrainSaw is funded by the Wellcome Trust and the Gatsby Charitable Foundation. UCL has generously funded further development of the hardware via its capital equipment fund.
